DiabloSport Trinity Programmer T1000

DiabloSport Trinity Programmer T1000
Click to enlarge
Price:
$599.00 Shipped
Shipping: Free Shipping
Availability: In Stock
Part Number: T1000
Condition: New w/ Manufacture's Warranty
Manufacturer: Diablosport
Warranty: Authorized Dealer

DiabloSport Trinity Programmer T1000

2012 GM Corvette/Camaro
Another First to Market from DiabloSport!!
DiabloSport is proud to announce that the Trinity T1000 now support the 2012 GM Camaro and Corvette 6.2L LS3 and L99 engines. Expected gains are from 15-20+ HP/TQ and as with all DiabloSport programmers, custom tuning is also supported with our CMR software.

The DiabloSport Trinity is one of the most advanced devices of its kind on the market featuring; Color Touch screen, Advanced Data Acquisition, Customizable Gauges, and Full Reflash/Reprogram capability. Trinity is housed in a slim, custom styled, easy to use unit.

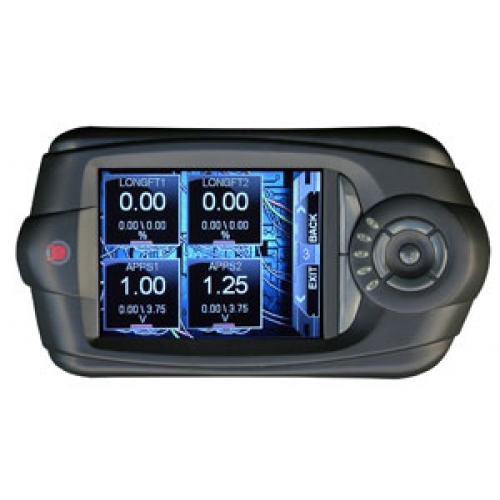

Virtual Gauge Montior
Over 100MB of on board memory devoted solely to recording and playing back diagnostic PID/DMR data, it allows users to record hours of continuous data streams directly from the vehicle's PCM/ECM. The Trinity interprets PID and DMR data received from the OBD-II Diagnostic port on your vehicle and converts it into a readable format: A Virtual Gauge! Individual user customization is one of Trinity's most recgonizable features.

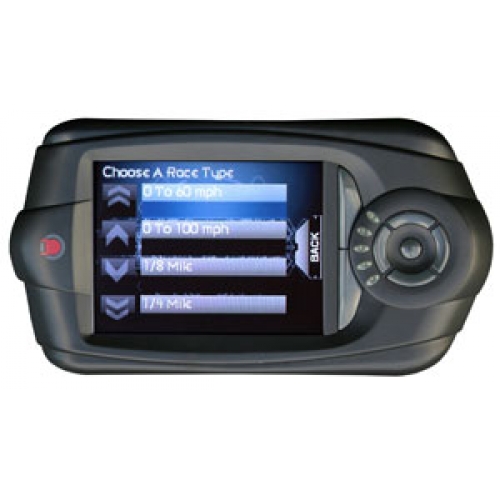

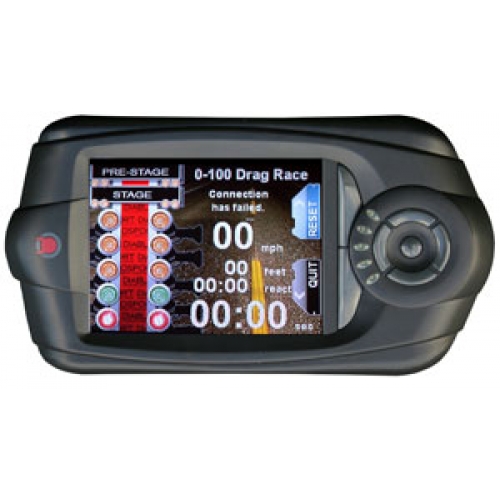

Also the Trinity includes a Virtual Drag Tree! Using parameters such as vehicle speed, peak torque, wheel speed and others, the Trinity is able to give you an estimated quarter mile, 1/8 mile or time trial. The Trinity's virtual tree allows users to choose to either monitor their reaction time (like the real world) or have the tree start when they press the gas from a stop. There are advantages to both! If you are using reaction time, you will gain experience for the track when launching off the line while the motion start will show you the time less human error.

EGT Module
The DiabloSport Exhaust Gas Temperature Sensor Module accurately measures the exhaust gas temperature of any internal combustion engine. The DiabloSport EGT module is manufatured specifically to interface with the DiablSport Trinity. Once connected and set up properly, the DiabloSport Trinity will be able to display your vehicle's EGT info right on the high resolution color touch screen in a digital gauge of your choice.

Performance Programmer
The Trinity's tuning options vary depending on the vehicle that is being tuned. Gasoline powered vehicles feature tunes based on minimum octane ratings while Diesels are based on Horse Power Ratings. Trinity also accepts up to five additional custom tunes. Note: These options may not be the same in all models and can vary based on the current update of the tool.

Diesel Tuning:

Towing: Gains of 40-60 HP and an average of 100 Ft/Lbs of torque (depending on application) and is for use when towing heavy loads near the applications factory towing capacity. This setting is designed to increase drivability while towing, net extra economy when cruising at highway speeds, and is helpful when driving through mountains while towing.

Economy: Adds between 60-100 HP and 180-200 Ft/Lbs of Torque, economy gains average in the 2-3 MPG range(Highway)! This setting is not designed for heavy towing- limits are in the range of 6,000-8,000 pounds depending on your vehicle's stock towing capacity. DiabloSport highly recommends the use of an aftermarket cold air intake and exhaust (4 inch diameter at the down pipe).

Extreme: This tune adds anywhere from 100- 185 horsepower and 220+ Ft/Lbs of torque and is specifically for peeling out down the strip! DiabloSport recommends only using the extreme tuning options if you have an exhaust and cold air intake due to a possible increase in EGT

Gas Tuning:
DiabloSport performance tuning with 93 octane can yield anywhere between 15-40 horsepower (measured at the wheels) and about the same in ft/lbs of torque(Some applications gain more or less, depending on engine size and platform). If you have a gasoline powered vehicle make sure that you are using the minimum octane fuel for the tune you selected. Some areas of the US and abroad may not have access to different octane rated fuels, but if you happen to be somewhere where 93 octane is not available, have no fear- the Trinity allows users to modify their spark and fuel tables so you can run lower octanes.

Adjustable Parameters

The following is a list of adjustable parameters that the Trinity may offer for your vehicle. This list is for gasoline powered vehicles only. All of the parameters listed here may be under a different name, or not available for your application.

Spark Advance (Multiple RPM bands)
Fuel Tables/WOT fuel (Multiple RPM bands)
Cooling Fans
Idle RPM
Mass Air Table
Rev Limits
Speed Limits
Shift Points RPM/MPH
Shift Pressure

Diagnostic Code Reader
Trinity can also be used as a diagnostic code reader. Save yourself hundreds of dollars each year reading/clearing your own computer codes rather than paying a dealer to do the same. Its as easy as a few simple steps.

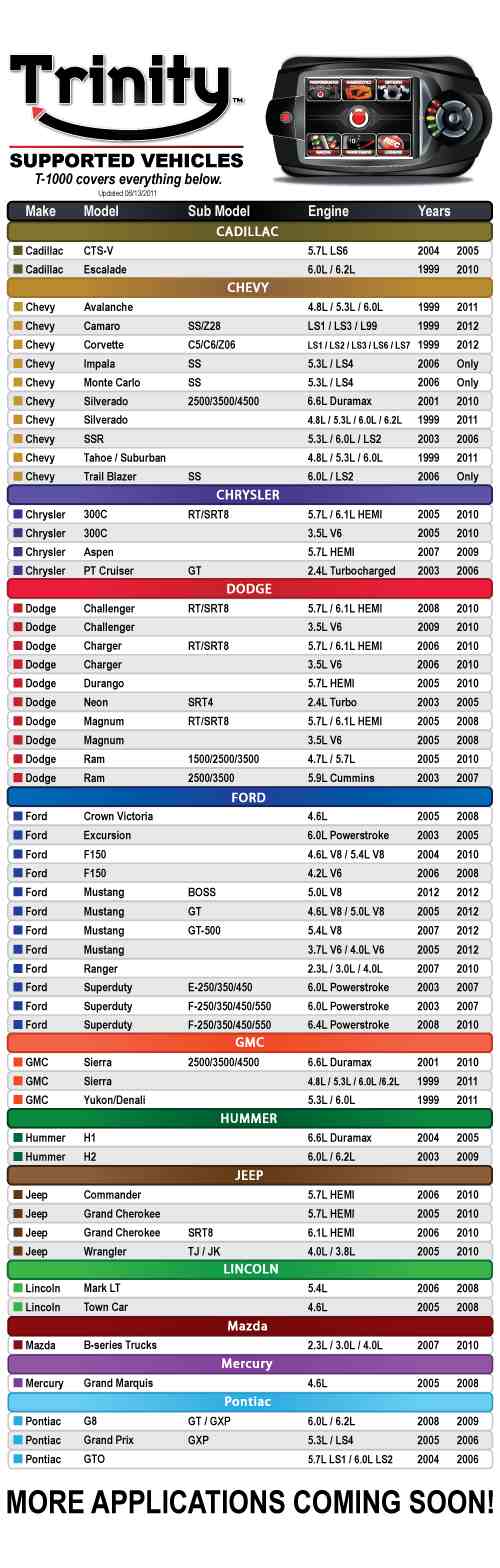

Applications:

2003-07 Dodge Ram 2500/3500/4500 5.9L Cummins 160-185HP Over Stock
2003-05 Dodge Neon SRT4 2.4L Turbo 30HP/TQ Over Stock
2005-10 Dodge Ram 1500/2500/3500 5.7L Hemi 30HP/TQ Over Stock
2005-10 Dodge Durango 5.7L Hemi 30HP/TQ Over Stock
2005-10 Jeep Grand Cherokee 5.7L Hemi 30HP/TQ Over Stock
2006-10 Jeep Commander 5.7L Hemi 30HP/TQ Over Stock
2005-10 Jeep Wrangler TJ/JK 3.8/4.0L 20HP/TQ Over Stock
2006-12 Chevy Corvette C6-Z06 6.0 LS2/6.2L LS3/7.0L LS7 20HP/TQ Over Stock
2010-12 Chevy Camaro SS 6.2L LS3/6.2L L99 20HP/TQ Over Stock
2005-10 Chrysler Charger/Challenger/Magnum/300/Jeep GC SRT8 6.1/5.7/3.5L 20HP/TQ Over Stock
2003-06 Chrysler PT Cruiser GT 2.4L Turbo 30HP/TQ Over Stock
2003-07 Ford F250/F350/F450/F550/Excursion/E250/E350/E450 6.0L PowerStroke 100HP Over Stock
2008-10 Ford F250/F350/F450/F550/E250/E350/E450 6.4L PowerStroke 160HP Over Stock
2005-12 Ford Mustang V6/GT/Shelby GT/Bullit/GT500 4.0L 3V/4.6L 3V/5.4L 4V Supercharged 20-40 HP/TQ Over Stock
2004-08 Ford F150 4.2L V6/4.6L 2V/5.4L 3V 20HP/TQ Over Stock
2007-10 Ford Ranger 2.3L/3.0L/4.0L 20HP/TQ Over Stock
2005-08 Ford Crown Vic/Grand Marquis/Town Car 4.3L 3V 20HP/TQ Over Stock
2006-10 GMC/Chevy Sierra/Silverado 2500/3500/4500 6.6L Duramax LLY/LBZ/LMM 120HP Over Stock
2007-11 GMC/Chevy Sierra/Silverado 2500/3500/4500 New Body Style 4.8L/5.3L/6.0L/6.2L V8 20-30 HP/TQ Over Stock
2007-11 GMC/Chevy Avalanche/Escalade/Suburban/Tahoe/Yukon 5.3L/6.0L V8 20-30HP/TQ Over Stock
2008-09 Hummer H2 6.2L V8 20-30HP/TQ Over Stock
2008-09 Pontiac G8 GT/GXP 6.0L L76/6.2L LS3 20HP/TQ Over Stock
2007-10 Mazda B Series Trucks 2.3/3.0/4.0L 20HP/TQ Over Stock

T1000 Features
Tune multiple supported vehicles (only 1 at a time)
Includes multi-level tuning for various power levels
The most end user adjustable parameters on the market
Supports custom tuning using Diablosport's CMR custom tuning software
Set up your own virtual gauge alarm/shift lights using the Trinity's LEDs
Hours of live data logging with over 100MB of onboard memory/individual user customization
Build your own gauge layouts or use a preloaded layout
Infinite number of combinations and/or customization of gauges
Supports third party devices such as EGT, Wide band, Boost, and much more
Accurately compute multiple "track times" from your Trinity
1/4 miles time : 1/8 mile time
0-60 time trial : 0-100 time trial
Start from a reaction tree (just like the track) or from a stop [Once accelerator is engaged)
Test your reaction time

Note: Trinity can also be used to support other DiabloSport products such as the DiabloSport Extreme PowerPuck and/or other third party analog devices such as wideband and EGT. The Trinity has the capability to support two additional analog products at any time. This means you can use the Trinity to adjust your Extreme PowerPuck settings on the fly while monitoring your vehicle's EGT.

What's in the box?

1 DiabloSport Trinity
1 DiabloSport USB Cable
1 DiabloSport OBD2 Cable
1 Trinity Windshield Mount
1 Trintiy Software CD
1 Trinity Quick Start Guide
1 DiabloSport Sticker
